BAL FZ Roller Shutters
Australia’s first BAL FZ roller shutters are available to purchase online. CISRO rated and tested in accordance with AS 1530.8.2-2018.
Get DIY & Installed Roller Shutter Prices in less than 10 minutes.
Fill up the form below or call us on 1800 399 348 to get your free Roller Shutters Quote under 10 minutes.Out of stock
What separates BAL FZ shutters from other shutters
- Rating: Comes with a CSIRO test for Bal FZ rating
- Aesthetics: Compact pelmet box, 12 top Colorbond colours for pelmets and guides, shutter colour only available in stainless steel
- Excellent for: Bushfire protection, Security, Light Control & blocking and Noise Reduction
- Good for: Glare reduction, heat and cold transfer reduction and energy savings
- Other shutters to consider: There are no other roller shutters to consider if you are requiring a Bal FZ rated roller shutter
Important Details
- Maximum Height: 3000mm
- Maximum Width: 4600mm
- Maximum Area: 10.5 square meters (for larger sizes, contact us)
- 37 mm x 9.5 mm x 0.6 mm 304 stainless steel Interlocking slats
- Tested in accordance with AS 1530.8.2-2018
Benefits
- Maximum security
- Up to 85% noise reduction
- Up to 12° cooler in summer
- Up to 12° warmer in winter
- Up to 98% light block out
- Up to 25% more energy efficient
- Secure, built-in locking mechanism
- Eliminates condensation
- Reduces glare
- Rust prevention: 98% components aluminium and stainless steel
Shutter Details
Shutter Specification
- Maximum Height: 3200mm
- Maximum Width: 4600mm
- Security locks
- Shutter stops
- Shutter guide Securing points at 250mm-300mm intervals
- Pelmet box securing points at 250mm-300mm intervals
- ~ 54 mm x 22 mm x 1.2 mm aluminium shutter guides with 304 stainless steel covers
- ~ 70 mm x 23 mm x 2.5 mm Heavy Duty aluminium shutter guides (optional) with stainless steel covers
- 304 stainless steel pelmet end plates.
- Protective side plates
- Shutter Protection axle rings
- Foam pad shutter springs
- 57mm x 2.1mm aluminium axle Heavy Duty for shutters up to 7 square meters
- 70mm x 2mm Heavy Duty steel axle for shutters range 7.1 sq metres to 16 sq meters
- Stainless Steel Bearings for axle idler
- Heavy Duty Steel Axle idler
- Weight per sq metre 14kg
Major Components
Shutter Profile
- Type – 37 mm x 9.5 mm x 0.6 mm Roll Formed high density injected foam
- 304 Stainless Steel Interlocking slats
- Insulation – Double Wall with high density injected foam
- Brand – Heroal
- Country of origin – Germany
- Gauge – 0.6mm (thickness)

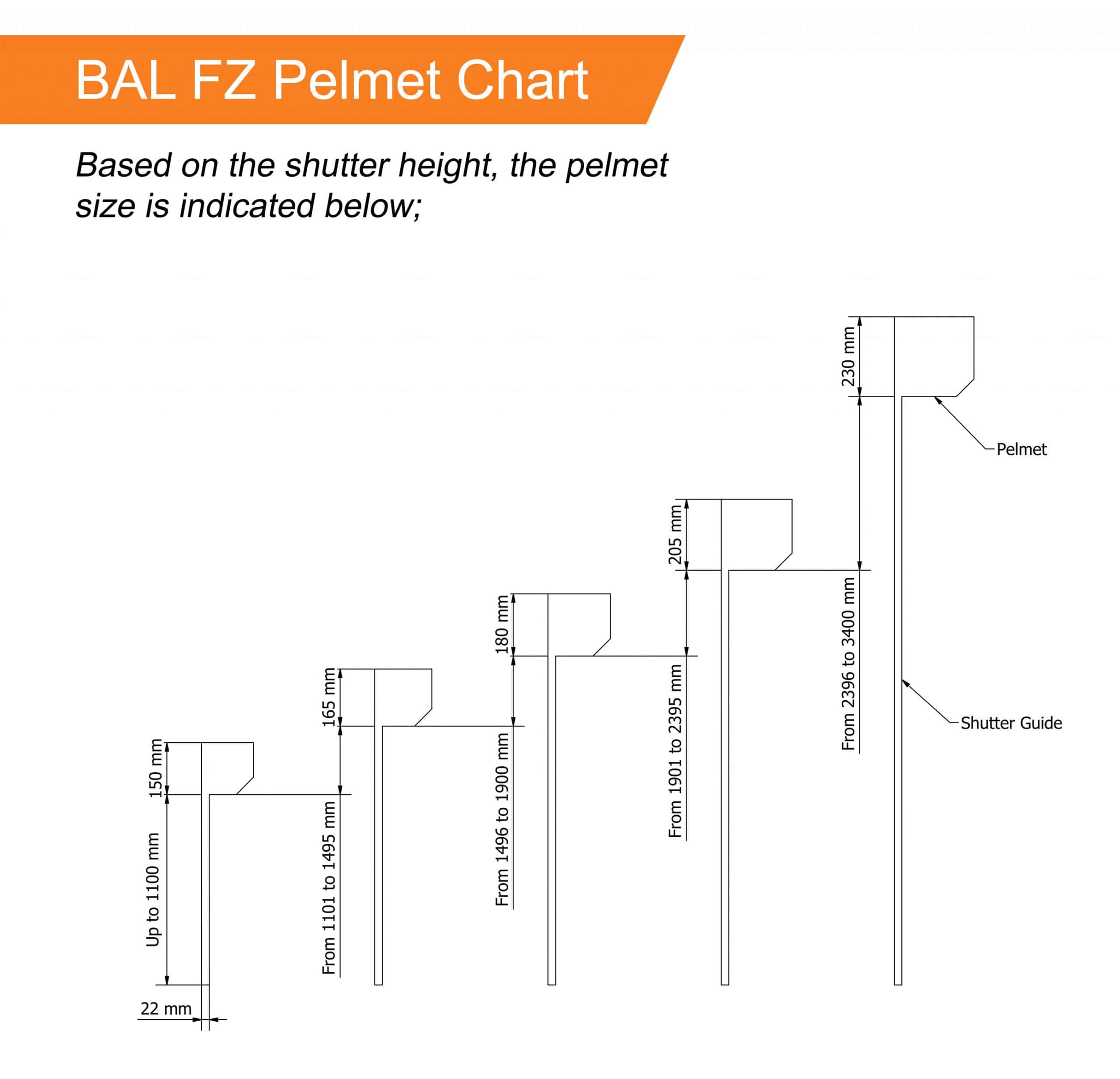

Pelmet
- Type – 0.78mm Aluminium
- Brand – Expalum
- Country of origin – Spain
Electric Motor
- Type – 230 volt mains tubular
- Brand – ASA
- Country of origin – Italy
Compliance
Compliance and Certification
Using the Heroal RS37RC3 shutter slat, this shutter has been tested in accordance with AS 1530.8.2-2018
Installation Requirements
- The shutter must be installed at least 25mm away from the window system
- The window system must be at minimum a 5mm toughened glass window with an aluminium frame
- Louvred windows and similarly poorly sealed windows will not be accepted
- The shutter pelmet must be above the window system
- A manual override motor must be used (or a battery backups UPS in lieu of a manual override motor if accepted by a certifier as being sufficient alternative to cater for allowing operation of the shutter in power outage)
What they offer
What they offer
- Bushfire FZ rating (flame Zone)
- Great protection for High risk areas
- Suitable for Medium noise areas
- Medium protection against heat, cold
- High protection for windy areas
- Excellent for peninsula seafronts
- External installation
Additional Information
Manual override motor needed for BAL FZ compliance or a battery backup if their builder signs off on it in lieu of a manual override motor
Prices:
All rates include GST, as well as shipping charges where these are not indicated separately.
Note: Discounts and/or free product offers do not apply to products purchased before or after the specified promotional period.
Placing Your Order:
The order process through our online shop consists of several steps. First, you select the desired goods by following the measure instructions or visiting How to Measure page on the website. Next, you must provide your measurements and other order data, including the billing address and delivery address (if different). As a next step, you must select the payment method. Finally, you have the option of checking all the information provided (e.g. name, address, payment method, ordered goods) and correcting it if required before sending us your order by clicking “Purchase”.
We will process your order and assign an estimated delivery date upon receipt of the information.
Please note that production lead times commence only when we have received the full payment. It is the customers responsibility to ensure this is paid in a timely manner.
Delivery Conditions:
Areas that are non Major Cities in the structure, or some properties/farms may incur delays in delivery.
Public holidays, Easter, and Christmas can extend the delivery times by 15-20 working days.
Any roller shutter that exceeds a width or height of 2200mm, or weighs more than 24kg, necessitates a commercial delivery address with a forklift access; Alternatively, it can be collected from the nearest depot.
Wiring AC Electrical Motors:
AC Electric motors need to be wired into the mains of the property by a fully qualified electrician. It is the customer’s responsibility to make sure this is done by a registered and qualified electrician.
Warranty Terms:
Visit Warranty page on the website for more information.
