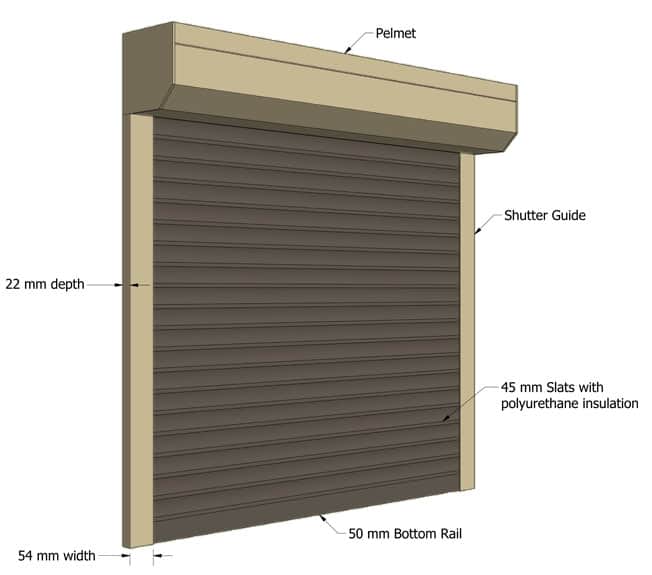

The following drawings and charts show the size of the roller shutter guides and pelmet box based on the size of the opening.
Shutter Guide (mm)250 to 11501151 to 15351536 to 19551956 to 27952796 to 2970
Pelmet Size (mm)150165180205230
